СХЕМА КОМПОНОВКИ ОСНОВНЫХ ЭЛЕМЕНТОВ ФОРСУНОК BOSCH 0 445 120 019/523
Каталог деталей форсунок BOSCH с 0445120019/523
Графическое представление элементов форсунок BOSCH
0445120019, 0445120020, 0445120029, 0445120059, 0445120120, 0445120123,
0445120125, 0445120231, 0986435523
Упс... Ваш экран слишком мал чтобы просматривать таблицу!
|

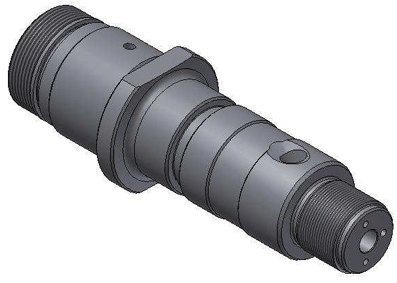

Тело форсунки 0 445 120 029 / 059 / 120 / 231 |
|
|

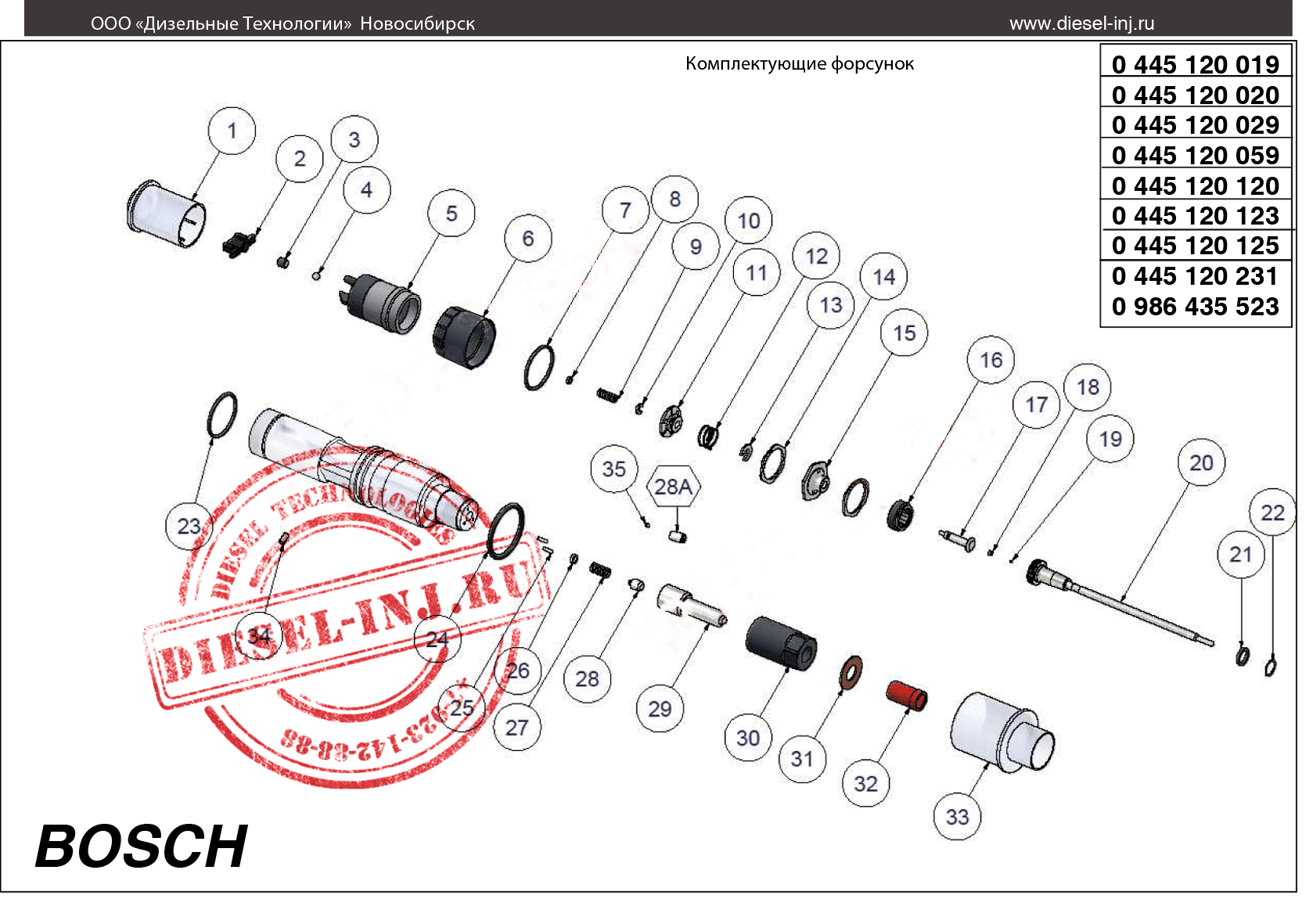

Графическое представление элементов форсунок BOSCH 0 445 120 019 / 020 / 029 / 059 / 120 / 123 / 125 / 231 / 0 986 435 523
|
RIF. |
REDAT |
ORIGIN. |
Q.TY |
DESCRIPTION |
| 1 |
1 210 091 |
6 000 900 095 |
1 |
PLASTIC CAP |
| 2 |
1 210 474 |
F 00R J00 849 |
1 |
COUPLING |
|
3 |
1 208 690 |
F 00R C00 139 |
1 |
STUD |
|
4 |
1 208 373 |
1 903 230 007 |
1 |
BALL |
|
5+6 |
1 210 669 |
F 00R J02 697 |
1 |
SOLENOID GROUP |
|
6 |
1 209 171 |
F 00R J00 845 |
1 |
SOLENOID NUT |
|
7 |
1 209 170 |
F 00R J00 220 |
1 |
O-RING |
|
8 |
1 210 145 |
|
|
CALIBRATION SHIMS KIT from 0,90 to 1,90 (0,05) |
|
|
1 209 565 |
|
|
CALIBRATION SHIMS KIT from 1,20 to 1,70 (0,02) |
|
1 210 272 |
|
|
CALIBRATION SHIMS KIT from 1,20to 1,70 (0,05) |
|
|
1 210 277 |
|
|
CALIBRATION SHIMS KIT from 1,70 to 1,96 (0,02) |
|
|
9 |
1 209 126 |
F 00R J00 308 |
1 |
SPRING |
|
10 |
1 209 116 |
|
1 |
SPRING BLOCK |
|
11 |
1 209 112 |
|
1 |
VALVE |
|
12 |
1 209 117 |
F 00R J00 168 |
1 |
SPRING |
|
13 |
1 209 115 |
|
1 |
SPRING BLOCK |
|
14 |
1 210 213 |
|
1 |
CALIBRATION SHIMS KIT O19 from 0,90 to 1,00 (0,01) |
|
|
1 209 562 |
|
|
CALIBRATION SHIMS KIT O19 from 1,00 to 1,10 (0,01) |
|
1 210 245 |
|
|
CALIBRATION SHIMS KIT O19 from 1,10 to 1,20 (0,01) |
|
|
1 210 251 |
|
|
CALIBRATION SHIMS KIT O19 from 1,20 to 1,30 (0,01) |
|
|
1 210 257 |
|
|
CALIBRATION SHIMS KIT O19 from 1,30 to 1,40 (0,01) |
|
|
1 210 263 |
|
|
CALIBRATION SHIMS KIT O19 from 1,40 to 1,50 (0,01) |
|
|
1 210 925 |
|
|
CALIBRATION SHIMS KIT O18 from 0,90 t o 1,00 (0,01) | |
|
1 210 937 |
|
|
CALIBRATION SHIMS KIT O18 from 1,00 to 1,10 (0,01) |
|
|
1 210 880 |
|
|
CALIBRATION SHIMS KIT O18 from 1,10 to 1,20 (0,01) |
|
|
1 210 892 |
|
|
CALIBRATION SHIMS KIT O18 from 1,20 to 1,30 (0,01) |
|
|
1 210 903 |
|
|
CALIBRATION SHIMS KIT O18 from 1,30 to 1,40 (0,01) |
|
|
1 210 914 |
|
|
CALIBRATION SHIMS KIT O18 from 1,40 to 1,50 (0,01) | |
|
15 |
1 209 113 |
|
1 |
BUSH |
|
16 |
1 209 122 |
F 00R J00 840 |
1 |
NUT |
|
17 |
1 209 114 |
|
1 |
PIN |
|
18 |
1 208 868 |
F 00V C21 001 |
1 |
SUPPORT |
|
19 |
1 208 869 |
F 00V C05 001 |
1 |
BALL |
|
20 |
1 210 513 |
F 00R J00 399 |
1 |
VALVE ASSEMBLY For 0 445 120 019 / 020 |
|
|
1 210 797 |
F 00R J02 130 |
1 |
VALVE ASSEMBLY for 0 445 120 059 / 123 / 231 |
|
1 209 046 |
F 00R J01 941 |
1 |
VALVE ASSEMBLY For 0 445 120 029 /120/ 125 |
|
|
1 208 962 |
F 00R J01 941 |
1 |
VALVE ASSEMBLY For 0 445 120 029 / 125 |
|
|
21 |
1 208 877 |
|
1 |
GASKET RING |
|
22 |
1 208 878 |
|
1 |
WASHER |
|
23 |
1 209 170 |
F 00R J00 220 |
1 |
O-RING |
|
24 |
1 210 511 |
F 00R J01 878 |
1 |
O-RING For 0 445 120 019 / 020 |
|
|
1 209 202 |
F 00R J01 026 |
1 |
O-RING for 059 for 0 445 120 029 / 059 / 120 /123 / 125 / 231 |
|
25 |
1 206 387 |
2 433 201 024 |
2 |
DOWEL |
|
26 |
1 210 224 |
|
CALIBRATION SHIMS KIT from 0,90 to 1,90 (0,05) |
|
|
|
1 209 567 |
|
CALIBRATION SHIMS KIT from 1,20 to 1,70 (0,02) |
|
|
1 210 273 |
|
|
CALIBRATION SHIMS KIT from 1,20to 1,70 (0,05) |
|
|
1 210 276 |
|
|
CALIBRATION SHIMS KIT from 1,40 to 1,86 (0,02) |
|
|
27 |
1 208 862 |
F 00V C09 023 |
1 |
SPRING |
|
|
1 211 322 |
|
|
POINTERS KIT from 8,28 to 8,40 (0,01) For 0 445 120 019 / 020 |
|
28 |
1 209 561 |
|
|
POINTERS KIT from 8,40 to 8,50 (0,01) For 0 445 120 019 / 020 |
|
|
1 209 765 |
|
|
POINTERS KIT from 8,50 to 8,70 (0,01) For 0 445 120 019 / 020 |
|
28A |
1 208 875 |
F 00V C40 401 |
1 |
NOZZLE PIN For 0 445 120 029 / 059 / 120 / 123 / 125 / 231 |
|
29 |
|
0 433 171 699 DLLA150P1076 |
1 |
NOZZLE For 0 445 120 019 / 020 |
|
|
|
0 433 175 449 DSLA 128 P 1510 |
1 |
NOZZLE For 0 445 120 059 |
|
|
|
0 433 175 481 DSLA 140 P 1723 |
1 |
NOZZLE For 0 445 120 123 |
|
|
|
0 433 171 843 DSLA 118 P 1357 |
1 |
NOZZLE For 0 445 120 029 / 125 |
|
|
|
0 433 172 037 DSLA 118 P 1691 |
1 |
NOZZLE For 0 445 120 120 |
|
30 |
1 209 118 |
F 00R J01 208 |
1 |
NOZZLE NUT For 0 445 120 019 / 020 |
|
|
1 208 950 |
F 00R J00 841 |
1 |
NOZZLE NUT For 0 445 120 059 / 123 / 231 |
|
|
1 209 139 |
F 00R J02 219 |
1 |
NOZZLE NUT For 0 445 120 029 / 120 / 125 |
|
31 |
1 210 032 |
|
1 |
HEAT SHIELD For 0 445 120 019 / 020 |
|
|
1 210 459 |
F 00R J01 453 |
1 |
HEAT SHIELD For 0 445 120 059 / 123 / 231 |
|
|
1 209 393 |
F 00V C17 503 |
1 |
HEAT SHIELD For 0 445 120 029 / 120 / 125 |
|
32 |
1 204 409 |
|
1 |
PLASTIC CAP For 0 445 120 019 / 020 / 029 / 135 |
|
|
1 207 429 |
|
1 |
PLASTIC CAP For 0 445 120 059 / 120 / 123 / 231 |
|
33 |
1 210 512 |
6 000 900 051 |
1 |
PALSTIC CAP For 0 445 120 019 / 020 |
|
|
1 210 090 |
6 000 610 126 |
1 |
PALSTIC CAP For 0 445 120 059 / 123 / 231 |
|
34 |
1 209 201 |
F 00R J01 636 |
1 |
PIN For 0 445 120 029 / 059 / 120 / 123 / 215 / 231 |
|
35 |
1 210 681 |
|
|
CALIBRATION SHIMS KIT From 0,90 to 1,01 (0,01) For 0 445 120 059 / 123 / 231 / 029 / 125 |
|
|
1 210 201 |
|
|
CALIBRATION SHIMS KIT From 1,02 to 1,13 (0,01) For 0 445 120 059 / 123 / 231 / 029 / 125 |
|
|
1 209 568 |
|
|
CALIBRATION SHIMS KIT From 1,14 to 1,25 (0,01) For 0 445 120 059 / 123 / 231 / 029 125 |
